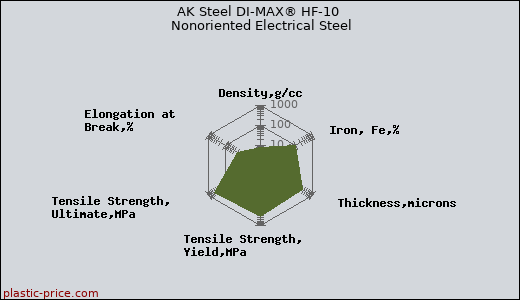

AK Steel DI-MAX® HF-10 Nonoriented Electrical Steel price 2081 per MT

Physical Properties
Density
7.65 g/cc
Thickness
250 microns

Mechanical Properties
Hardness, Rockwell B
78
Tensile Strength, Ultimate
450 MPa
Tensile Strength, Yield
350 MPa
Elongation at Break
20 %

Component Elements Properties
Aluminum, Al
0.70 %
Iron, Fe
96.65 %
Silicon, Si
2.65 %

Electrical Properties
Exciting Power
0.0226 VA/lb @Magnetic Field 0.100 T, Frequency 50.0 Hz
Exciting Power
297.27 VA/lb @Magnetic Field 1.70 T, Frequency 200 Hz
Electrical Resistivity
0.0000540 - 0.0000560 ohm-cm

Magnetic Properties
Core Loss
0.0123 W/kg @Magnetic Field 0.100 T, Frequency 50.0 Hz
Core Loss
843 W/kg @Magnetic Field 1.00 T, Frequency 5000 Hz

Descriptive Properties
Magnetic Induction at 5000 A/m (T)
1.65
Saturation Induction (T)
1.99
