Polikim EFALON® K-35 PTFE, 35% Carbon Filled price 1537 per MT

Physical Properties
Density
2.00 - 2.10 g/cc
Deformation
0.30 - 1.8 % @Temperature 23.0 °C, Time 86400 sec, Pressure 13.7 MPa
Deformation
1.3 - 1.5 % @Temperature 150 °C, Time 86400 sec, Pressure 0.981 MPa
Deformation
2.3 - 4.3 % @Temperature 23.0 °C, Time 86400 sec, Pressure 13.7 MPa
Deformation
5.0 - 6.0 % @Temperature 150 °C, Time 86400 sec, Pressure 4.90 MPa

Mechanical Properties
Hardness, Shore D
66 - 70
Tensile Strength, Ultimate
10.8 - 15.7 MPa
Elongation at Break
55 - 90 %
Compressive Strength
9.32 - 11.8 MPa
Coefficient of Friction
0.16
Coefficient of Friction, Static
0.13
Limiting Pressure Velocity
0.00360 - 0.00376 MPa-m/sec
Limiting Pressure Velocity
0.00409 - 0.00654 MPa-m/sec
Limiting Pressure Velocity
0.004905 - 0.008175 MPa-m/sec

Thermal Properties
CTE, linear
75.0 - 80.0 µm/m-°C @Temperature 25.0 - 100 °C
CTE, linear
90.0 - 110 µm/m-°C @Temperature 25.0 - 200 °C
CTE, linear
120 - 140 µm/m-°C @Temperature 25.0 - 300 °C
Thermal Conductivity
0.795 - 0.879 W/m-K
Maximum Service Temperature, Air
270 °C
Minimum Service Temperature, Air
-260 °C

Electrical Properties
Volume Resistivity
>= 100 ohm-cm
Surface Resistance
>= 10000 ohm

Alternative products

RTP Company EMI 961 Polysulfone (PSU), Stainless Steel Fiber - Electrically Conductive - EMI/RFI/ESD Protection accurate 66%

$ 2062/MT

Specific Gravity: 1.35 g/cc
Filler Content: 10 %
Linear Mold Shrinkage: 0.0050 - 0.0070 cm/cm @Thickness 3.17 mm
Tensile Strength at Break: 68.9 MPa
Elongation at Break: >= 10 %

RTP Company ESD 1383 Polyphenylene Sulfide (PPS); Carbon Fiber - Electrically Conductive accurate 66%

$ 2224/MT

Specific Gravity: 1.41 g/cc
Additive Loading: 20 %
Linear Mold Shrinkage: 0.00020 - 0.00080 cm/cm @Thickness 3.20 mm
Tensile Strength at Break: 169 MPa
Elongation at Break: 0.80 - 1.5 %

RTP Company RTP 681 HEC FR Acrylonitrile Butadiene Styrene (ABS), Nickel-Coated Carbon Fiber - EMI/RFI/ESD Protection - Electrically Conductive accurate 66%

$ 1698/MT

Specific Gravity: 1.32 g/cc
Filler Content: 10 %
Linear Mold Shrinkage: 0.0015 - 0.0025 cm/cm @Thickness 3.17 mm
Tensile Strength at Break: 75.8 MPa
Elongation at Break: 1.0 - 2.0 %

RTP Company RTP 899 X 125746 A Acetal (POM) Carbon Fiber - Electrically Conductive - High Purity accurate 66%

$ 2200/MT

Specific Gravity: 1.43 g/cc
Linear Mold Shrinkage: 0.0020 - 0.0060 cm/cm @Thickness 3.20 mm
Tensile Strength at Break: 89.6 MPa
Elongation at Break: 2.0 - 4.0 %
Tensile Modulus: 6.55 GPa

TIMCAL ENSACO™ 250G Conductive Carbon Black accurate 66%

$ 1979/MT

Density: 0.170 g/cc
Volatiles: <= 0.20 %
Oil Absorption: 190 %
Particle Size: 45 µm
pH: 8.0 - 11

Premix Thermoplastics PRE-ELEC® PP 1385 accurate 66%

$ 1949/MT

Density: 0.980 g/cc
Linear Mold Shrinkage: 0.012 - 0.014 cm/cm
Melt Flow: 0.30 g/10 min @Load 2.16 kg, Temperature 230 °C
Melt Flow: 3.0 g/10 min @Load 5.00 kg, Temperature 230 °C
Hardness, Shore A: 96

RTP Company ESD C 680 FR Acrylonitrile Butadiene Styrene (ABS) Carbon Fiber - Electrically Conductive - Flame Retardant accurate 66%

$ 1737/MT

Specific Gravity: 1.27 g/cc
Linear Mold Shrinkage: 0.0010 cm/cm @Thickness 3.20 mm
Tensile Strength at Break: 110 MPa
Elongation at Break: 2.0 - 3.0 %
Tensile Modulus: 9.31 GPa

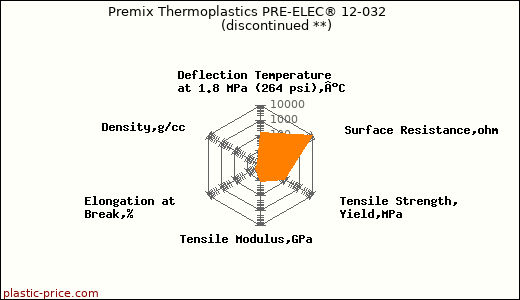

Premix Thermoplastics PRE-ELEC® 12-032 (discontinued **) accurate 66%

$ 1451/MT

Density: 1.47 g/cc
Linear Mold Shrinkage: 0.0020 - 0.0040 cm/cm
Tensile Strength, Yield: 76.0 MPa
Elongation at Break: 2.5 %
Tensile Modulus: 12.0 GPa

RTP Company EMI 330 D FR Polycarbonate (PC), Stainless Steel Fiber - Electrically Conductive - EMI/RFI/ESD Protection - Flame Retardant accurate 66%

$ 1580/MT

Specific Gravity: 1.35 g/cc
Filler Content: 7.5 %
Linear Mold Shrinkage: 0.0060 - 0.0070 cm/cm @Thickness 3.17 mm
Tensile Strength at Break: 64.1 MPa
Elongation at Break: 5.0 - 8.0 %
