Overview of materials for Polycarbonate, Glass + PTFE Filled price 1551 per MT

Physical Properties
Density
1.28 - 1.61 g/cc
Filler Content
10.0 - 40.0 %
Water Absorption
0.0170 - 0.250 %
Additive Loading
15.0 - 30.0 %
Linear Mold Shrinkage
0.000500 - 0.00800 cm/cm
Linear Mold Shrinkage, Transverse
0.00400 - 0.00700 cm/cm
Melt Flow
3.00 - 22.2 g/10 min

Mechanical Properties
Hardness, Rockwell M
90.0 - 95.0
Hardness, Rockwell R
114 - 120
Tensile Strength, Ultimate
27.6 - 124 MPa
Tensile Strength, Yield
0.539 - 117 MPa
Elongation at Break
1.00 - 120 %
Elongation at Yield
1.80 - 7.00 %
Modulus of Elasticity
2.41 - 13.8 GPa
Flexural Yield Strength
39.3 - 193 MPa
Flexural Modulus
2.28 - 10.7 GPa
Compressive Yield Strength
72.4 - 110 MPa
Izod Impact, Notched
0.320 - 12.3 J/cm
Izod Impact, Unnotched
0.801 - 16.0 J/cm
Izod Impact, Notched (ISO)
9.50 - 17.9 kJ/m²
Izod Impact, Unnotched (ISO)
34.4 - 58.1 kJ/m²
Charpy Impact Unnotched
2.70 - 6.00 J/cm²
Charpy Impact Unnotched
2.00 - 3.70 J/cm² @Temperature -30.0 - -30.0 °C
Charpy Impact, Notched
0.800 - 2.50 J/cm²
Charpy Impact, Notched
2.00 - 2.00 J/cm² @Temperature -30.0 - -30.0 °C
Falling Dart Impact
11.6 - 18.4 J
Coefficient of Friction
0.150 - 0.550
Coefficient of Friction, Static
0.120 - 0.480
K (wear) Factor
15.0 - 254 x 10 mm³/N-M

Thermal Properties
CTE, linear
23.4 - 58.0 µm/m-°C
Thermal Conductivity
0.202 - 0.317 W/m-K
Maximum Service Temperature, Air
130 - 150 °C
Deflection Temperature at 0.46 MPa (66 psi)
136 - 149 °C
Deflection Temperature at 1.8 MPa (264 psi)
121 - 152 °C
Vicat Softening Point
150 - 170 °C
Flammability, UL94
HB - 5VA

Electrical Properties
Electrical Resistivity
1000 - 1.00e+16 ohm-cm
Surface Resistance
1000 - 1.00e+16 ohm
Insulation Resistance
1.00e+12 ohm
Dielectric Constant
3.20 - 3.40
Dielectric Strength
17.7 - 18.1 kV/mm
Dissipation Factor
0.00700 - 0.0100
Arc Resistance
120 sec

Processing Properties
Processing Temperature
249 - 299 °C
Nozzle Temperature
282 - 310 °C
Melt Temperature
221 - 338 °C
Mold Temperature
65.6 - 121 °C
Drying Temperature
110 - 130 °C
Moisture Content
0.0200 %
Dew Point
-28.9 °C
Injection Pressure
41.4 - 138 MPa

Alternative products

Overview of materials for Nylon 66, Glass Fiber/PTFE Filled accurate 59%

$ 1503/MT

Density: 1.22 - 1.78 g/cc
Filler Content: 5.00 - 40.0 %
Water Absorption: 0.300 - 6.00 %
Water Absorption at Saturation: 0.800 - 5.50 %
Additive Loading: 15.0 - 50.0 %

BASF Ultramid® KR 4355 G7 BK 00564 35% Glass Filled PA6/6T (Conditioned) accurate 59%

$ 1599/MT

Bulk Density: 0.500 - 0.800 g/cc
Density: 1.43 g/cc
Water Absorption: 4.3 - 5.3 %
Moisture Absorption at Equilibrium: 0.80 - 1.2 %
Viscosity Measurement: 130

RTP Company RTP 200B Nylon 6/10 (PA 6/10) Base Resin (discontinued **) accurate 59%

$ 2389/MT

Specific Gravity: 1.08 g/cc
Water Absorption: 0.40 %
Linear Mold Shrinkage: 0.015 cm/cm @Thickness 3.17 mm
Linear Mold Shrinkage: 0.020 cm/cm @Thickness 6.35 mm
Hardness, Rockwell R: 111

BASF Ultramid® KR 4355 G5 BK 00564 25% Glass Filled PA6/6T (Conditioned) accurate 59%

$ 1502/MT

Bulk Density: 0.500 - 0.800 g/cc
Density: 1.35 g/cc
Water Absorption: 5.0 - 6.0 %
Moisture Absorption at Equilibrium: 1.1 - 1.5 %
Viscosity Measurement: 130

RTP Company RTP 201B Nylon 6/10 (PA 6/10) Glass Fiber 10% (discontinued **) accurate 59%

$ 1553/MT

Specific Gravity: 1.15 g/cc
Filler Content: 10 %
Water Absorption: 0.28 %
Linear Mold Shrinkage: 0.0050 cm/cm @Thickness 3.17 mm
Linear Mold Shrinkage: 0.0070 cm/cm @Thickness 6.35 mm

BASF Ultramid® KR 4355 G5 25% Glass Filled PA6/6T (Conditioned) accurate 59%

$ 1663/MT

Bulk Density: 0.500 - 0.800 g/cc
Density: 1.35 g/cc
Water Absorption: 5.0 - 6.0 %
Moisture Absorption at Equilibrium: >= 1.3 %
Moisture Absorption at Equilibrium: 1.1 - 1.5 %

BASF Ultramid® KR 4350 BK 00464 PA6/6T (Conditioned) accurate 59%

$ 1909/MT

Bulk Density: 0.450 - 0.800 g/cc
Density: 1.16 g/cc
Water Absorption: 6.5 - 7.5 %
Moisture Absorption at Equilibrium: 1.6 - 2.0 %
Viscosity Measurement: 130

Shandong Dongyue Shenzhou New Material Co Vinylidene Fluoride (VDF) accurate 59%

$ 1581/MT

Density: 0.617 g/cc @Temperature 23.6 °C
Molecular Weight: 64 g/mol
Vapor Pressure: 35.9433 bar @Temperature 20.0 °C
Melting Point: -144 °C
Boiling Point: -85.7 °C @Pressure 0.1013 MPa

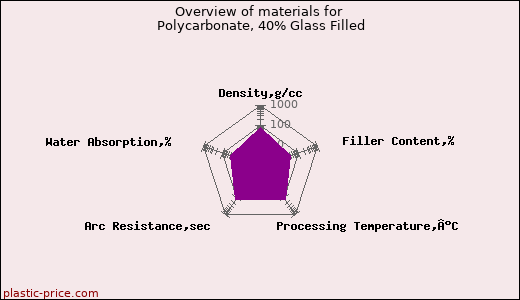

Overview of materials for Polycarbonate, 40% Glass Filled accurate 59%
